CPT (Cone Penetration Testing) 101: Determining Soil Profiles from CPT Data

January 19, 2015 by Vertek Team

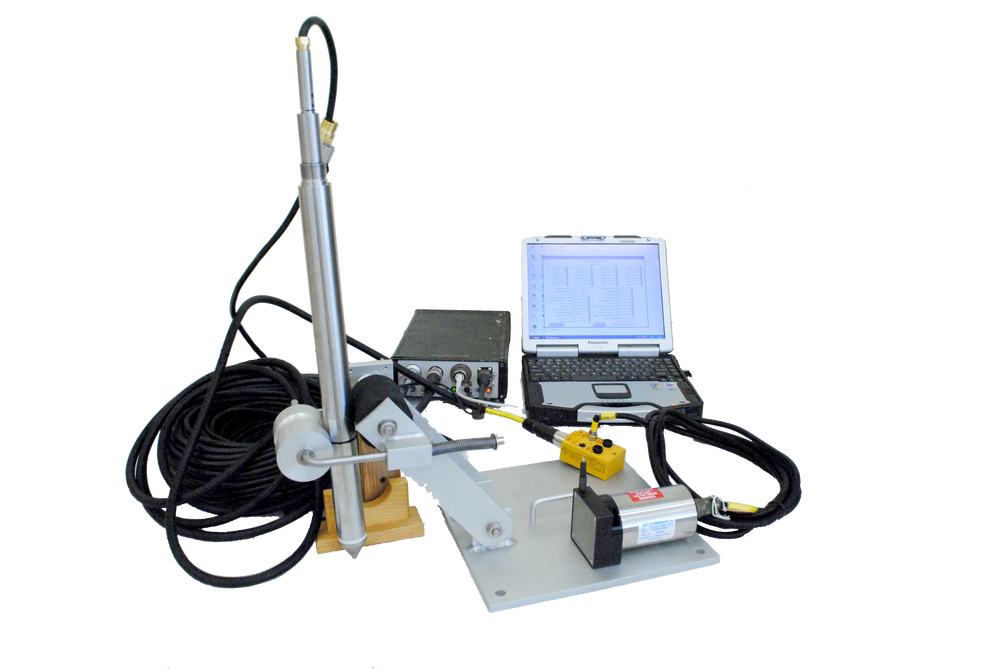

CPT cones data acquisition

Cone Penetration Testing allows the tester to identify the nature and sequence of subsurface soil types and to learn the physical and mechanical characteristics of the soil – without necessarily taking a soil sample.

How does it work?

During a CPT test, a hardened cone is driven vertically into the ground at a fixed rate, while electrical sensors on the cone measure the forces exerted on it. The zone behavior type of the subsurface layers can be extrapolated from two basic readings: cone or tip resistance and sleeve friction.

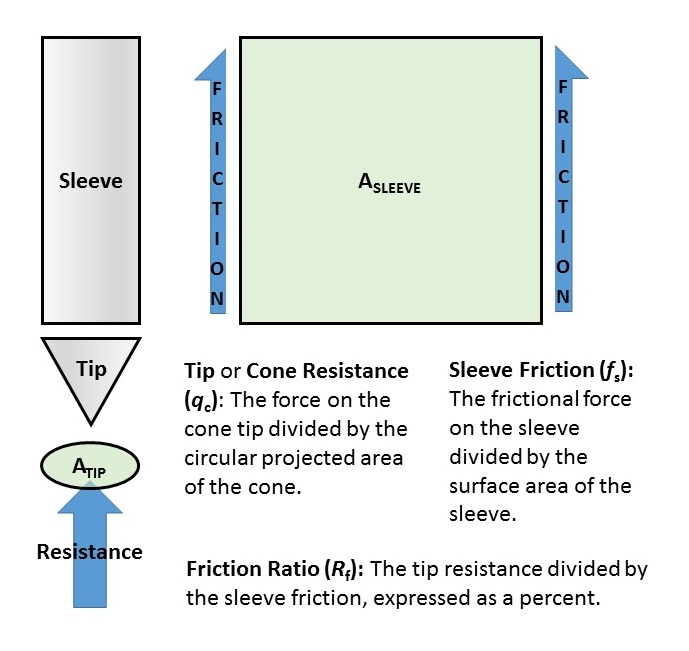

Cone Penetration Testing
  • Cone Resistance, denoted qc, represents the ratio of the measured force on the cone tip and the area of the normal projection of the cone tip. The cone resistance indicates the undrained (i.e., including in-situ moisture) shear strength of the soil.
  • Sleeve Friction, denoted fs, is the friction force acting on the sleeve divided by its surface area.

The relationship between these two measurements is expressed in the Friction Ratio, denoted Rf  and given as a percent. It is the ratio of the sleeve friction to the cone resistance. High friction ratios (high friction, low cone resistance) indicate clayey soils, while low friction ratios indicate sandy soils.

The relationship between friction ratio and cone resistance is the simplest method of identifying soil strata with a CPT system, and is especially convenient because the soil behavior type can be extrapolated immediately as the data is collected. An example soil classification chart is given below (though this example uses the corrected cone ratio qt, which we’ll discuss in another blog).

Soil behavior type from cone resistance and friction ratio

As you can imagine, several factors can affect the accuracy of these predictions, for example:

  • Overburden Stress: the pressure exerted on a substrate by the weight of the overlying material
  • Pore Water Pressure: the pressure of the groundwater in the gaps between soil or rock particles

Fortunately, most modern CPT cones are equipped with pore pressure sensors: corrections based on this data provide more accurate and repeatable classifications, especially in soft, fine-grained soils. Mathematical corrections along with some geologic knowledge of the test site can resolve many of the other factors.

Depending on your testing needs, CPT systems can be fitted with a variety of additional sensors to measure quantities including:

  • soil moisture
  • pH
  • temperature
  • electrical resistivity (to detect groundwater contamination)
  • fluorescence (indicates hydrocarbon contamination

And yes, CPT systems can be used to take soil samples – and liquid and gas samples, as well.

We will discuss the collection and interpretation of CPT data in more detail soon! To see Vertek’s full line of CPT cones, push systems, carriers, and data acquisition systems, check out our Geotechnical and Environmental Catalog.
