CPT – S4 Mini-Track Rig

Cone penetration testing
on any terrain.

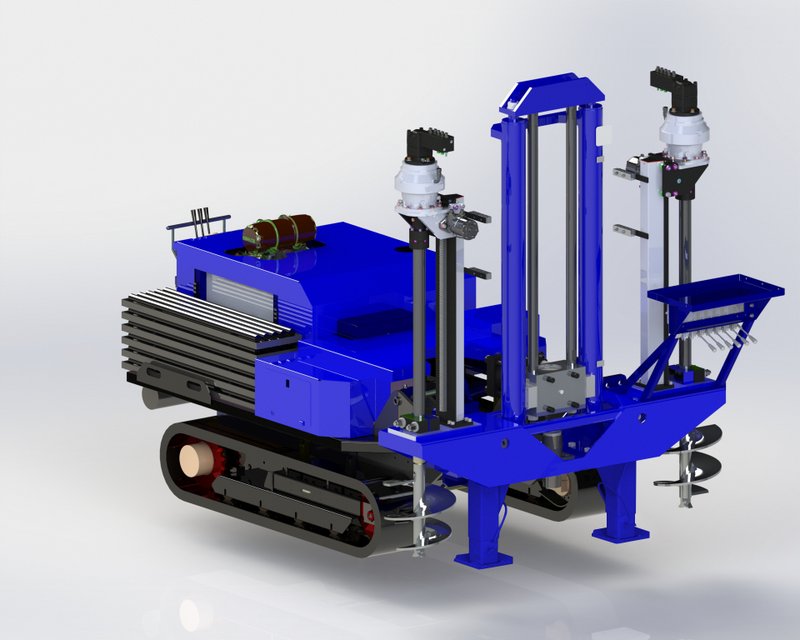

Vertek’s S4 Mini-Track rig is the newest edition to our already robust line of self-powered cone penetration testing (CPT) rigs.

As part of the S4 family of CPT systems, the S4 Mini-Track rig provides a powerful compact carrier at an affordable capital cost when compared to the cost of new construction equipment.

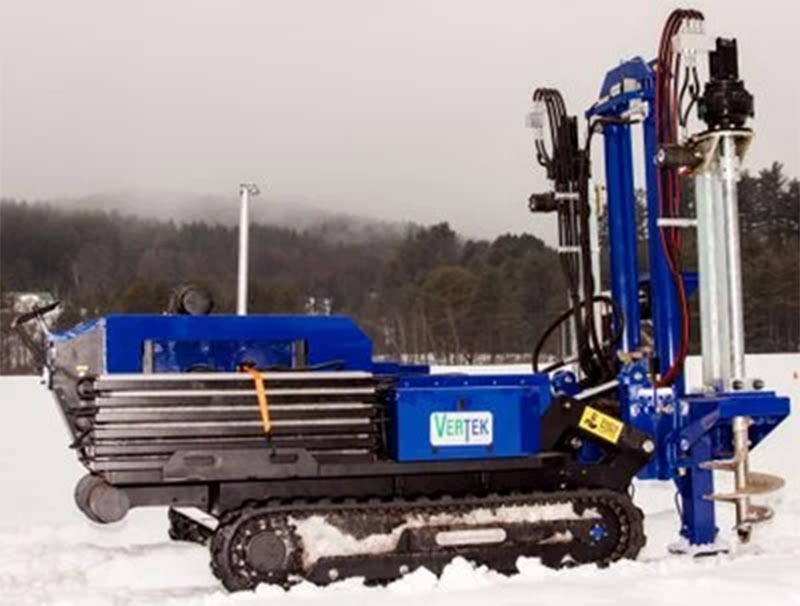

This rubber-tracked rig is easy to maneuver, ideal for limited access, and maintains a low ground pressure of 4.5 psi. The S4 combination gives you more options to meet your clients’ CPT needs with one versatile CPT push system.

  • Vertek S4 CPT Mini-track
  • Vertek S4 CPT Mini-track
  • Vertek S4 CPT Mini-track
  • Vertek S4 CPT Mini-track

Specifications

Carrier
Power Unit37 Hp Gasoline
Fuel tank10 Gallons
Propulsion2 Speed Hydraulic
Track Ground Pressure4.5 psi
Mast Tilt-35 to +15 degrees

Hydraulics
ControlsManual Levers
Pump TypeFixed Displacement
Pump Size18 gpm
Reservoir Size20 Gallon
Operating Pressure3000psi
JacksManual Screw with Drop Leg

Electrical
Battery12 VDC
Inverter120VAC, 300 Watts

CPT System
Push Capacity178 kn (20 tons)
Pull Capacity222 kn (25 tons)
Stroke112 cm (44″)
Retract Time11 Seconds
Extend Time 15 Seconds
Primary ClampMechanical or Hydraulic
AnchorsUp To 50cm (20″)

Dimensions
LxWxH370cm x 183cm x 188cm (125″x72″x74″)
Weight2,681 kg (5,900 lbs)

Options Include

  • Mechanical or Hydraulic Clamp
  • Diesel or Gas Engine
  • Anchor Size (300,350,400, or 500mm)
  • Decontamination System
  • Anchor Extensions
  • Auxiliary Hydraulic Clamp
  • Hydraulic Jacks on Carrier
  • remote Operations – Belly Pack

Our commitment

When you purchase a piece of Vertek CPT equipment, you become part of our family. We provide every customer with unparalleled customer service and unlimited technical support. From design to build to training to the field, we are by your side and always just a phone call away.


Have questions?

Click here or give us a call at 1-800-639-6315 to discuss your CPT needs and our solutions.


Get the Vertek Product Catalog

Work with the world leader in the development and manufacturing of advanced in-situ soil testing apparatus.

Download Product Catalog
